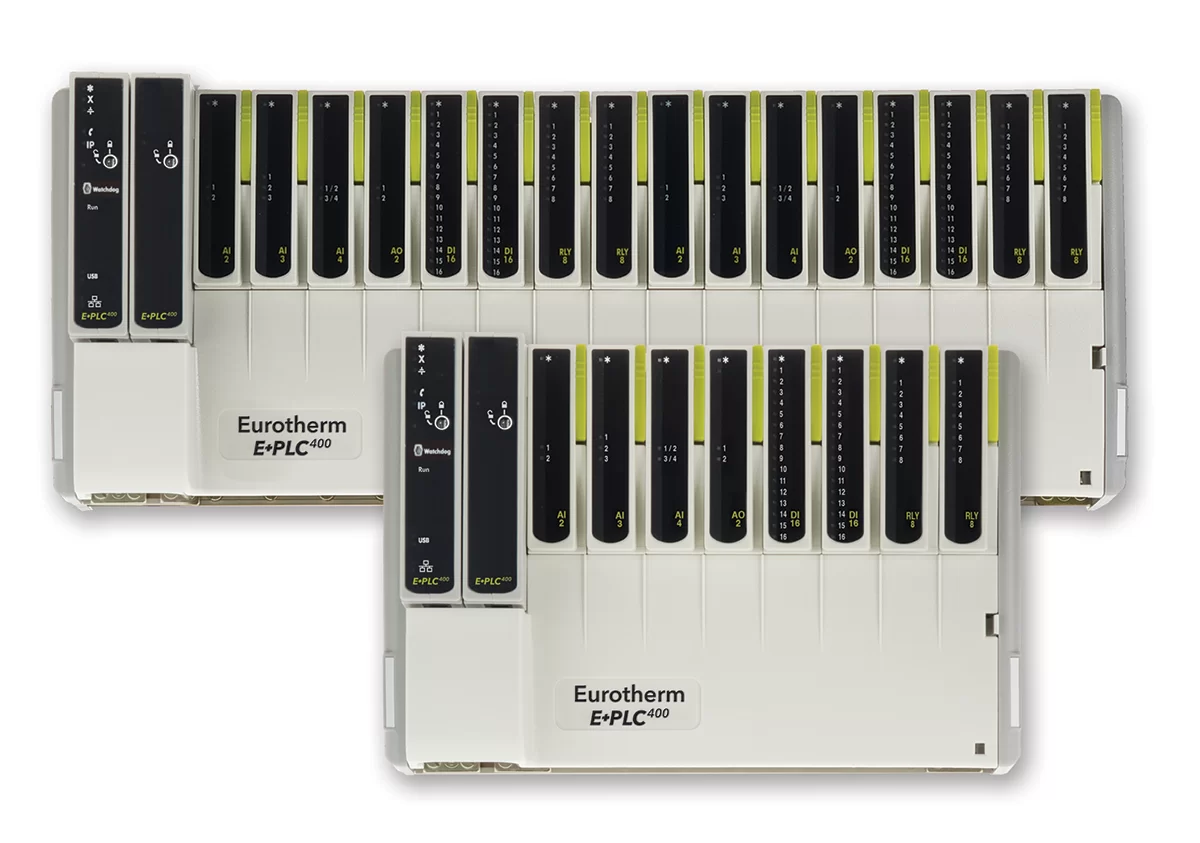

E+PLC400 Combination PLC
E+PLC400 Combination PLC
Advanced control, data management and visualization in a modular platform solution
- A modular combination PLC with selectable base sizes to suit your application
- Precise control, setpoint programmer and tamper resistant recording fully integrated within a PLC application
- Minimizes engineering and commissioning costs while maximizing process performance
- Inbuilt advanced PID and setpoint programmer functions
- Continuous and batch recording
- Visualization remotely browsable from multiple devices
- More processing power and I/O, make it suitable for larger machines with more complex functionality
- Larger memory allows more extensive use of ladder logic and sequencing programs
Description
E+PLC400 is a modular PLC designed to meet the stringent regulatory requirements of thermal and other advanced manufacturing industries.
By utilizing the open industry standard IEC61131-3 CODESYS® platform, E+PLC enables simplified engineering through a single integrated programming and visualization environment. Includes advanced function block libraries for:
- Heat treatment applications
- Control and data recording
- ‘OEM security’ and customization
Unique PID control functions designed by EurothermTM are built in, enabling faster commissioning and tighter control of the overall process, as well as easing conformance to regulatory and end-customer requirements, including:
- 6 PID sets to help maintain tight control at specific setpoints
- Intelligent auto-tune for optimal control and commissioning
- Specialized cutback function for overshoot control
Data management embedded in E+PLC helps manufacturers meet strict regulatory process data requirements, including:
- Eurotherm tamper-resistant UHH file format (a superior alternative to editable csv files commonly found in PLCs)
Ethernet communication offers connectivity to IIoT (Industrial Internet of Things) and Industry 4.0 technologies.
To assist with operational efficiency, E+PLC400 has an embedded webserver for remote viewing on mobile devices.
Specification
| Archiving Strategy | Yes |
|---|---|
| Autotuning PID | Yes |
| Available I/O Modules | AI8, AO2, D16, DI16, DO16, RLY8, ZI |
| pa_batch | 2173 |
| Communications Protocols | FTP, Modbus, Modbus Serial RTU (Master/ Slave), OPC-DA via PC based software (*Contact factory for availability), TCP/IP (Master/Slave) |
| I/O Expansion Method | Modbus |
| Mounting | DIN rail |
| Panel HMI (Protocol) | E+HMI150 (OPC-DA) |
| Programming Languages | CFC, FBD, IEC61131-3 compliant, IL, LD, SFC, ST |
| Programming Platform | CODESYS (open) |
| Recording Duration (approx) | Based on 4 chs at intervals of: 1s 50.5 days 10s 1.28 years 20s 2.77 years 60s 8.3 years |
| Secure Recording | Yes |
| Setpoint Programmer | Yes |
| AMS2750F | Yes |
| Web Visualisation | Yes |
